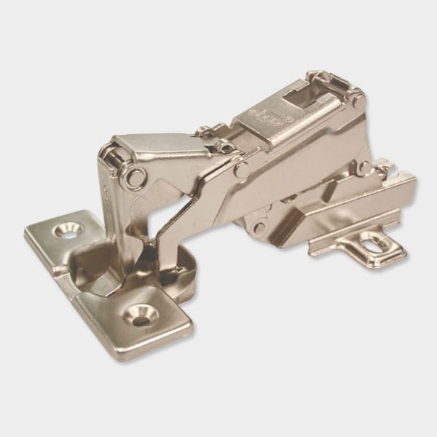

165° Hinge - Overlay & Half Overlay (I) - Nickle Plated
The 165° Hinge - Overlay & Half Overlay is designed for both overlay and half overlay doors, providing a 165° opening angle for wide access. It ensures smooth door movement and reliable performance for various cabinetry applications.
Price Starting From | Brand | Ebco |
| Condition | New |
| Model | 165° Hinge - Overlay & Half Overlay (I) |
| Code | H165-1-I |
| SIze | 35 mm |
| SPU | 10 |
| Finish | Nickle Plated |
| Set/Pcs | Set of 2 Pcs. |
Features:
Heavy duty cupboard hinges.
Spring loaded with 'Auto-Closing' feature.
165° opening angle.
Max shutter size 2135mm x 600mm (85" x 24") for 2 hinges.
Shutter thickness:16mm to 26mm.
Adjustments for gap and pivot angle.
'System 32' compatible.
Available in 2 models - Overlay & Half Overlay.
Shutter Cavity: Ø35mm, 12mm deep, 4mm from edge
Finish: Nickle Plated
Fitting Instructions
- Drill out the cavity in the shutter as per the dimensions, using the 'Ebco' drilling jig. Do not chisel.
- Fit the cap into the shutter cavity and screw on the hinge at right angle to the edge of the shutter.
- Mark the holes in the cabinet for mounting plate and screw on the mounting plate.
- By loosening the bracket screws, the shutter can slide horizontally and also be pivoted for varying pressure.
Caution- For efficiency and durability
- To avoid damage to hinge, do not force the door to exceed 105º.
- Do not apply paint or polish.
- Hinges must be parallel.
- The hinge must not be hammered.
