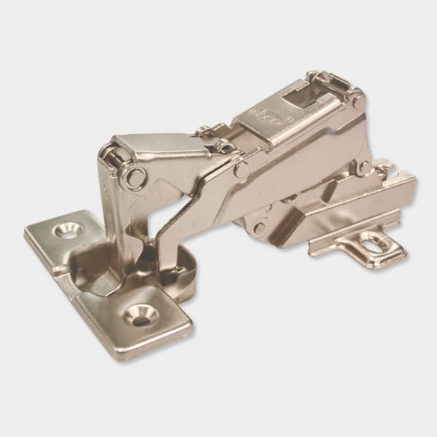

165° Hinge - Overlay & Half Overlay (I) - Nickle Plated

• Heavy duty cupboard hinges.

• Spring loaded with 'Auto-Closing' feature.

• 165° opening angle.

• Max shutter size 2135mm x 600mm (85" x 24") for 2 hinges.

• Shutter thickness:16mm to 26mm.

• Adjustments for gap and pivot angle.

• 'System 32' compatible.

• Available in 2 models - Overlay & Half Overlay.

• Shutter Cavity: Ø35mm, 12mm deep, 4mm from edge

• Finish: Nickle Plated

Fitting Instructions

• Drill out the cavity in the shutter as per the dimensions, using the 'Ebco' drilling jig. Do not chisel.
• Fit the cap into the shutter cavity and screw on the hinge at right angle to the edge of the shutter.
• Mark the holes in the cabinet for mounting plate and screw on the mounting plate.
• By loosening the bracket screws, the shutter can slide horizontally and also be pivoted for varying pressure.

Caution- For efficiency and durability

• To avoid damage to hinge, do not force the door to exceed 105º.
• Do not apply paint or polish.
• Hinges must be parallel.
• The hinge must not be hammered.
