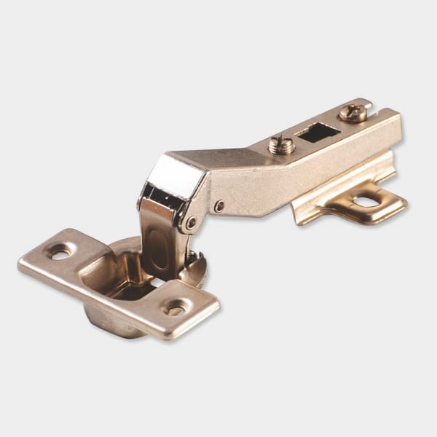

45° Cross Corner Hinge EURO - Nickel Plated
The 45° Cross Corner Hinge EURO is designed for corner cabinets, allowing doors to open smoothly at a 45° angle. It provides efficient access to corner spaces while maintaining a clean and functional look, ideal for European-style cabinetry.
Price Starting From Click below to Proceed to bulk order purchase and enjoy discounts up to 50%
Click below toProceed to bulk order purchase and enjoy discounts up to 70%
| Brand | Ebco |
| Condition | New |
| Model | 45° Cross Corner Hinge EURO |
| Code | EH45 |
| SIze | 35 mm |
| SPU | 100 |
| Finish | Nickle Plated |
| Set/Pcs | Set of 2 Pcs. |
Features:
Designed for cabinets having 45º cross corner shutters.
Max opening 105º
Max shutter size 850mm X 550mm (34"X22") for 2 hinges.
Shutter thickness 16mm to 19mm.
3 way adjustment with 'System 32' compatibility.
Finish : Nickel Plated
Fitting Instructions
- Drill out the cavity in the shutter as per the dimensions
- Fit the cap into the shutter cavity at right angle to the shutter
- Mark hole in the cabinet for mounting plate as per and screw on the mounting plate.
- 3 way adjustment for vertical, horizontal and pivot movement is available to take care of gaps.
- Corners of shutters must be radiused.
Caution- For efficiency and durability
- To avoid damage to hinge, do not force the door to exceed 105º.
- Do not apply paint or polish.
- Hinges must be parallel.
- The hinge must not be hammered.
