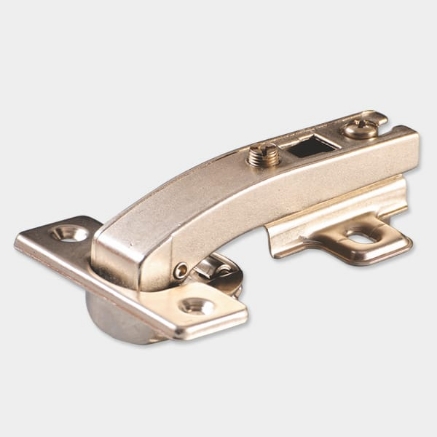

Blind Corner Hinge-EURO - Nickel Plated
The Blind Corner Hinge-EURO is designed for use in corner cabinets, allowing smooth and efficient door movement without exposing the hinge. It provides easy access to hidden corners, maximizing storage space while maintaining a clean, seamless look.
Price Starting From Click below to Proceed to bulk order purchase and enjoy discounts up to 50%
Click below toProceed to bulk order purchase and enjoy discounts up to 70%
| Brand | Ebco |
| Condition | New |
| Model | Blind Corner Hinge-EURO |
| Code | EHBC-1 |
| SIze | 35 mm |
| SPU | 100 |
| Finish | Nickel Plated |
| Set/Pcs | Set of 2 Pcs. |
Features:
- Designed for cabinets having blind corner panel.
- Max opening: 105º
- Max shutter size: 850mm X 550mm (34" X 22") for 2 hinges.
- Shutter thickness 16mm to 19mm.
- 3 way adjustment with system 32 compatibility.
- Finish - Nickel Plated.
Fitting Instructions
- Drill out the cavity in shutter as per the dimensions, using the Ebco drilling jig. Do not chisel.
- Fit the cap into the shutter cavity at right angle to the shutter
- Mark holes in the cabinet side wall and screw in the mounting plate.
- 3 way adjustment for vertical, horizontal and pivot movement is available to take care of gaps.
- Corners of shutters must be radiused.
Caution- For efficiency and durability
- To avoid damage to hinge, do not force the door to exceed 105º.
- Do not apply paint or polish.
- Hinges must be parallel.
- The hinge must not be hammered.
