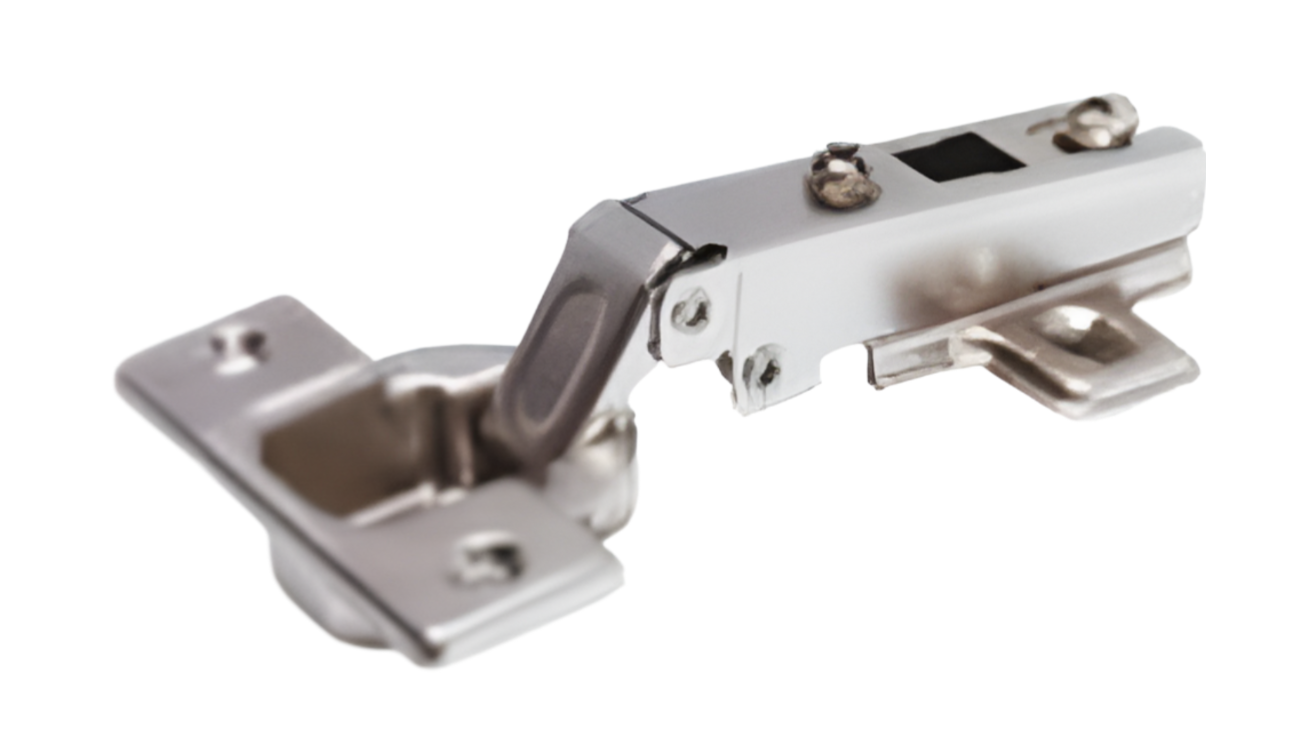

Ebco, E-HS3M1, Slip on Hinge - EURO with 4 Hole Mounting Plate - Overlay, Half Overlay & Inset, Primary Series, Hinges, Nickel Plated- 35mm

SKU: E-HS3M1
Manufacturer: EBCO
The Slip-on Hinge - EURO with 4 Hole Mounting Plate offers easy installation and secure attachment for cabinet doors, providing smooth and durable operation with a sturdy 4-hole mounting plate.
Price Starting From
₹ 114.00

Click below to Proceed to bulk order purchase and enjoy discounts up to 50%

Click below toProceed to bulk order purchase and enjoy discounts up to 70%

Product Description


Brand
Ebco
Condition
New
Model
Slip on Hinge - EURO with 4 Hole Mounting Plate - Overlay, Half Overlay & Inset
Code
E-HS3M1
Length
35mm
Max Load
13 Kgs
Finish
Nickel Plated
Set/Pcs
Set of 2 Pcs
SPU
100

  Features:

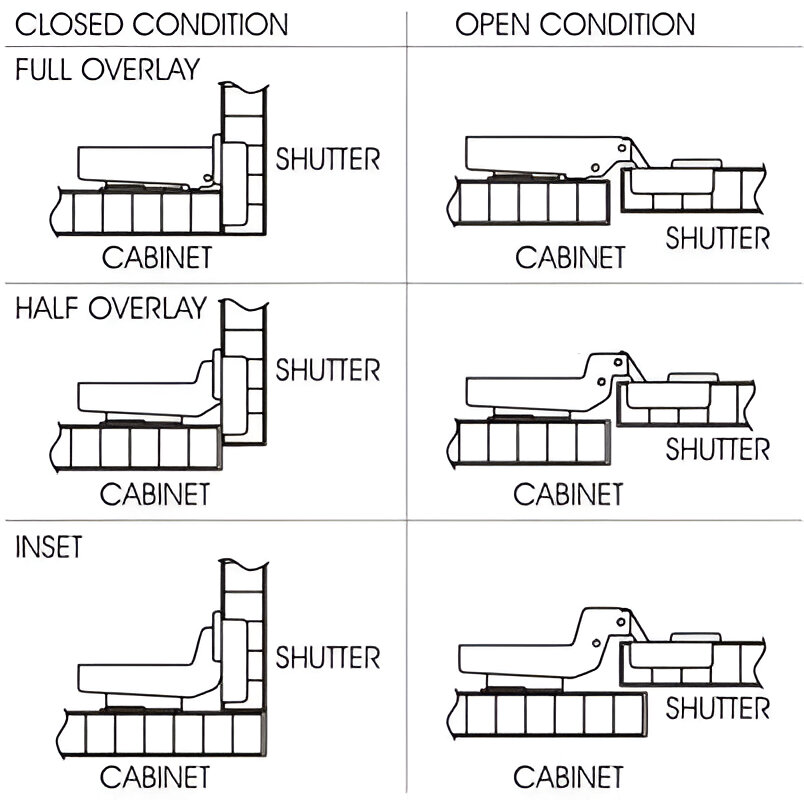

  • Available in Full overlay, Half overlay and Inset.

  • Max. opening - 105 °

  • Max. shutter size - 34" x 22" (850 mm x 550 mm) for 2 hinges.

  • Shutter Thickness - 16 to 19 mm

  • Shutter cavity Ø35 mm; 12 mm deep. cavity 4 mm from edge.

  • Finish - Nickel Plated.

  • Cap to cover the Ø35mm drilling made for maxi connectors, hinges, etc.

  • Easy to fit & remove and also reusable.


    Caution- For efficiency and durability.
    • Fit slides parallel and at equal heights.
    • Do not apply paint or polish.
    • Do not let saw dust enter into the slides.
