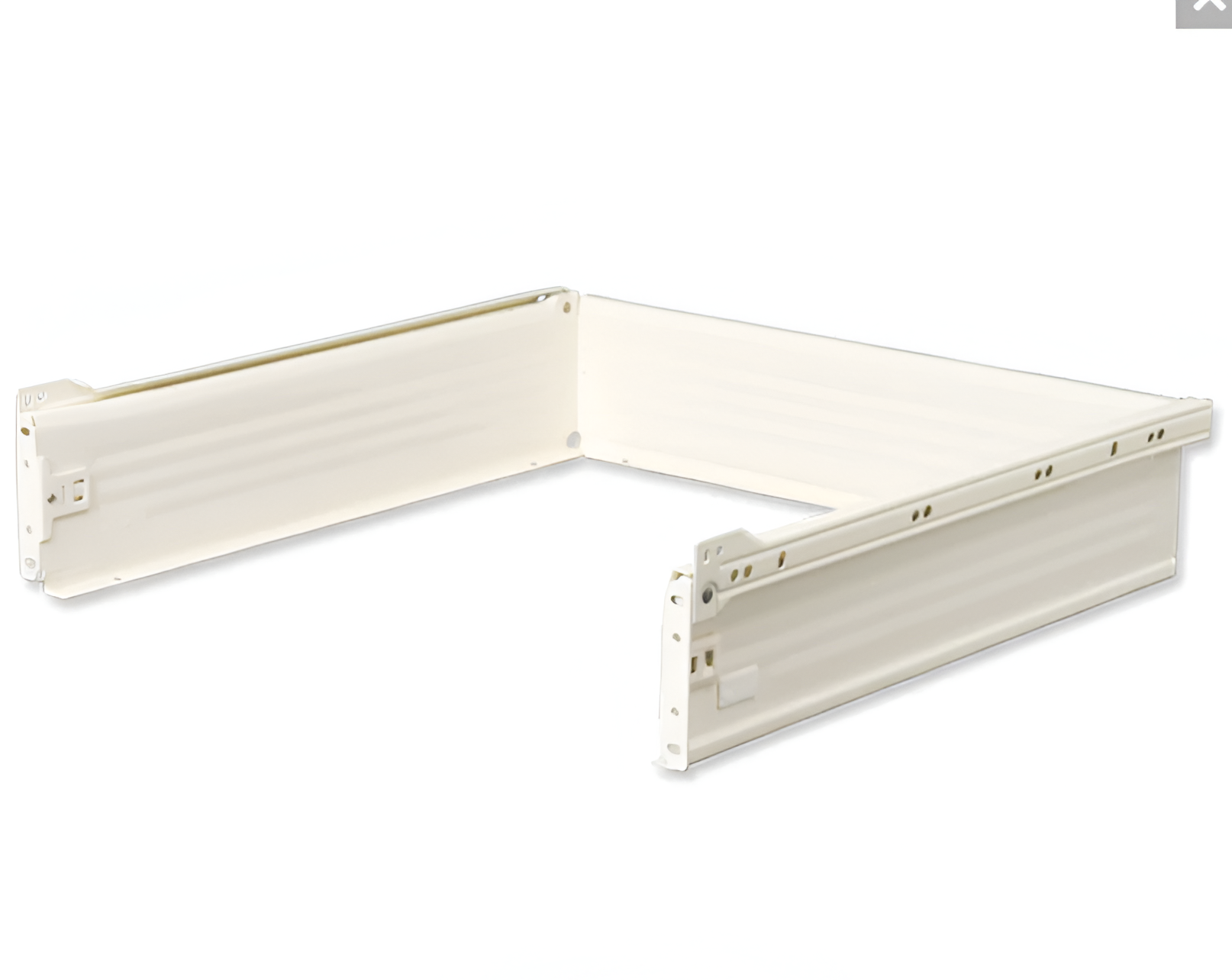

Ebco, FPQ86-40-45, Full Panel Quick Fit (Ht.54, 86, 125mm), Drawer Slides and Hinges, Ivory - 86 x 400 x 450mm

SKU: FPQ86-40-45
Manufacturer: EBCO
A Full Panel Quick Fit (Height: 54, 86, 125mm) is a modular electrical panel designed for quick and easy installation, offering flexible sizes for efficient and secure system setup.
Price Starting From
₹ 618.00

Click below to Proceed to bulk order purchase and enjoy discounts up to 50%

Click below toProceed to bulk order purchase and enjoy discounts up to 70%

Product Description


Brand
Ebco
Condition
New
Model
 Full Panel Quick Fit (Ht.54, 86, 125mm)
Code
FPQ86-40-45
Length
 86 x 400 x 450 mm
Extension
325 mm
Gap and Side
15.5 mm
Max Load
25 Kgs
Finish
Ivory
Inner Packing Qty
25 sets


Features:
  • Smooth silent roller system with "Auto Closing" feature.
  • Right side pair has lateral guiding
  • Left side pair has side gap adjustment
  • Tilt and remove drawer
  • Stopper to prevent drawer from falling
  • "System 32" compatible
  • Ribs provided for strength




Fitting Instructions
  • Side gap of 15.5 mm per side is required and acts as side panel of drawer.
  • Clearance of 25.4 mm from top edge of drawer required to tilt and remove drawer.
  • Fixed slide should be set by 2mm for auto-closing.
  • Eccentric cam for front facia height adjustment provided in 86 mm and 125 mm height full panels with 6mm bottom track
  • Screws should be recessed to avoid fouling.
  • Fixed slides should be fitted parallel and at equal height to each other.

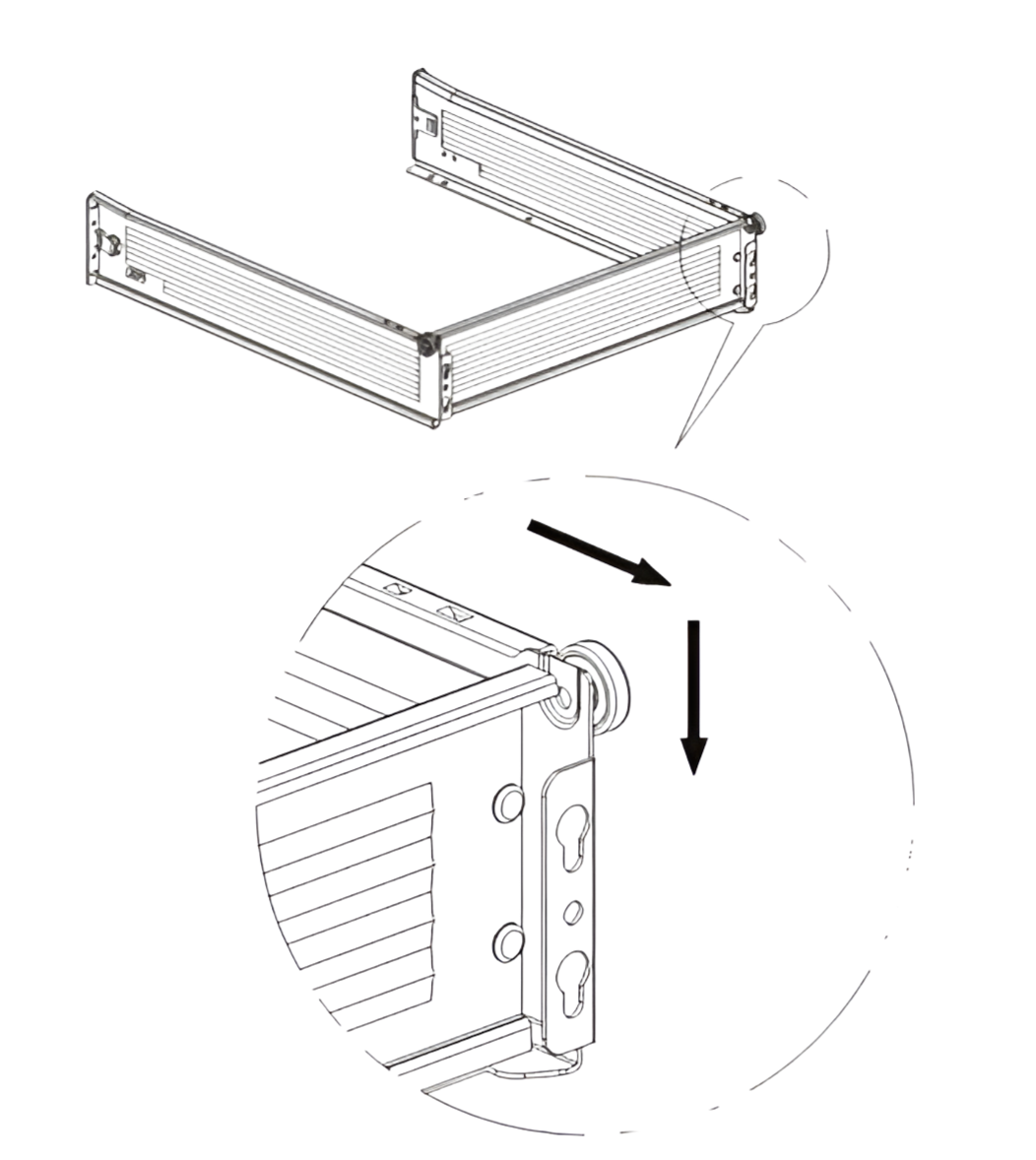

  • Front fascia is to be fitted into front brackets which have 2-way adjustment for alignment.

Caution- For efficiency and durability.
  • Strictly maintain side gap of 15.5 mm per side.
  • Fix slides parallel and at equal height.
  • Do not apply paint or polish.
