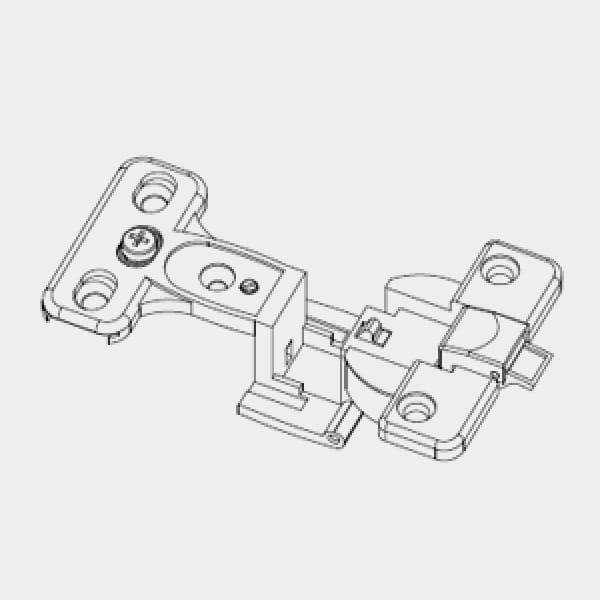

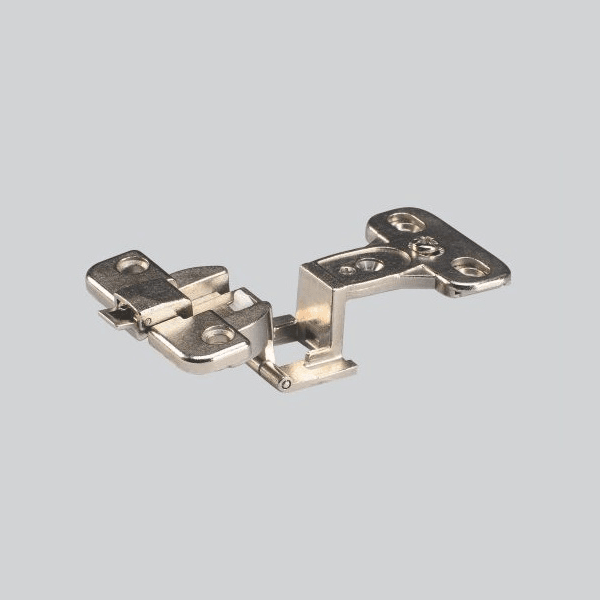

Hinge 270° - Nickle Plated
The Hinge 270° allows doors to open up to 270 degrees, providing wide access and ease of use. It's designed for smooth operation and is ideal for applications requiring maximum door swing, such as large cabinets or specialized furniture.
Price Starting From Click below to Proceed to bulk order purchase and enjoy discounts up to 50%
Click below toProceed to bulk order purchase and enjoy discounts up to 70%
| Brand | Ebco |
| Condition | New |
| Model | Hinge 270° |
| Code | H270 |
| SIze | 35 mm |
| SPU | 50 |
| Finish | Nickle Plated |
| Set/Pcs | Set of 2 Pcs. |
Features:
Unique Click on system enables easy installation of shutter.
Max. shutter size: 34" x 22" (850 mm x 550 mm for 2 hinges)
Shutter thickness 16mm to 19 mm.
Max. opening angle 270°.
'System 32' compatible.
Shutter cavity: Ø35mm, 12mm deep.
Easy to fit.
Die cast body.
- Finish: SS 304
Fitting Instructions
- Drill out the cavity in the shutter as per the dimensions
- Fit the cap into the shutter cavity and screw on
- Mark hole in the cabinet for mounting plate as per and screw on the mounting plate.
- Now align the shutter with the cabinet and click on the cap with the mounting plate.
- By loosening the Vertical adjustment screw the shutter can slide vertically.
- Shutter alignment can be adjusted by loosening & tightening grub screw.
Caution- For efficiency and durability
- To avoid damage to hinge, do not force the door to exceed 105º.
- Do not apply paint or polish.
- Hinges must be parallel.
- The hinge must not be hammered.
