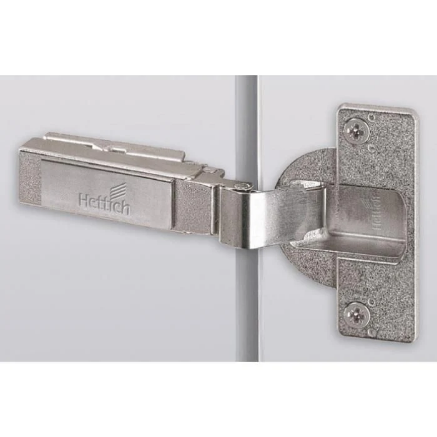

Intermat 9935 Hinge - TH22/L for 26-43 mm thick doors; Opening angle 95°, Base -3 (Crank 16°) with Mounting Plate (D 0 mm)

• Designed for door thickness up to ~43 mm (manufacturer indicates 16–43 mm).

• Opening angle: 95°.

• Mounting base: Base –3 (indicating an inset mounting adjustment).

• Crank: 16° (door will be set back/inset relative to face frame by approx 16° geometry).

• Mounting plate: D 0 mm (flush mounting plate).

• Concealed hinge: When door is closed, hinge is hidden — clean furniture appearance.

• Durable build from Hettich (zinc die-cast, nickel plated) — suitable for cabinetry/furniture.

Caution- For efficiency and durability

• Do not apply paint or polish.

• Ensure your door thickness is within the supported range (check 26–43 mm or the manufacturer spec of 16–43 mm).

• Because of the 16° crank, the door will sit inset or at a different offset — check that the door will clear adjacent doors, frames, and hardware.

• The D 0 mm plate means no added spacing — you’ll want to confirm overlay/inset design requirements before installation.

• Use appropriate number of hinges for heavier doors to avoid sagging or misalignment over time.
