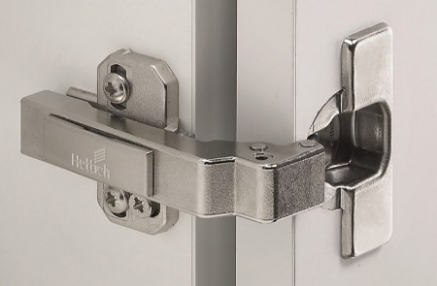

Intermat 9936 Hinge - TH42 for 14-32 mm thick doors; Opening angle 95°, Base -3.5 (Crank 16°) with Mounting Plate (D 0 mm)

• Suitable for door thickness from 14 mm to 32 mm.

• Opening angle of 95° for smooth and wide door movement.

• Concealed hinge – hidden from view when the door is closed.

• Base height -3.5 mm and crank 16° – perfect for inset doors.

• Includes a mounting plate (D 0 mm) for secure and accurate fitting.

Caution- For efficiency and durability

• Do not apply paint or polish.

• Ensure the hinge is used only for inset door applications (not for overlay types).

• Verify the door thickness (14–32 mm) before installation to avoid misalignment.

• Do not overtighten screws, as this can damage the hinge or mounting plate.

• Follow the correct drilling pattern for proper hinge cup fitting.
