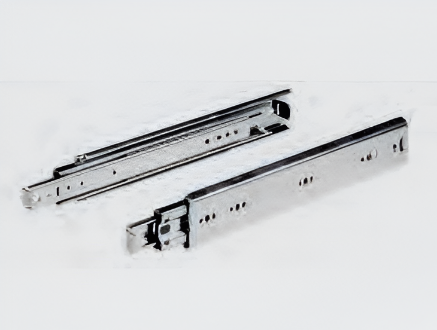

KA 4620 90 Kg, 450 mm

• Designed for heavy-duty use, with a load capacity of 90 kg.

• Side-mounted installation (on the side of drawer/cabinet).

• Over-extension type runner with pull-out stop and “roll-out prevention” feature for safety.

• Galvanised steel construction with blue-passivated finish for durability and resistance to corrosion.

• Fits wooden drawers with grooved, rebated or flush-fitted bottom panels.

• Narrow installation width approx 19 mm (for the EB19/installation width variant) allowing use in many cabinet designs.

Caution- For efficiency and durability

• Do not apply paint or polish.

• Ensure the drawer and cabinet body are strong enough to support up to 90 kg, including the drawer weight and contents.

• Install both runners perfectly level and parallel to avoid jamming or uneven movement.

• Use only the recommended screws and hole positions as per Hettich’s installation guide.

• Do not exceed the maximum load capacity, as this can damage the runner and affect smooth operation.

• Check that the cabinet depth is sufficient for the 450 mm runner (minimum around 454 mm).
