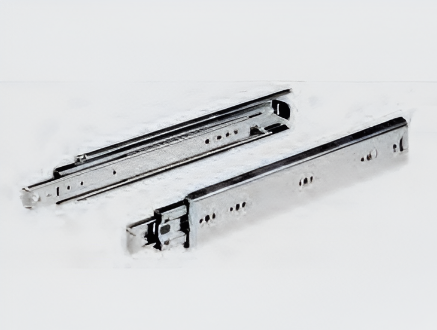

KA 4620 90 Kg, 500 mm

• Supports heavy load capacity: 90 kg for each pair.

• Side-installation (mounted on the side panels of drawer & cabinet).

• Nominal length: 500 mm (among the available lengths) for the variant you asked.

• Over-extension or full-travel type: includes features like “pull-out stop” and “roll-out prevention”.

• Built with precision ball bearings and designed for high lateral stability and smooth motion.

• Material: galvanised steel with blue-passivated finish for durability and corrosion resistance.

• Requires a certain minimum cabinet depth (for the 500 mm length variant) so the runners fit properly.

Caution- For efficiency and durability

• Do not apply paint or polish.

• Ensure the cabinet depth is suitable for the 500 mm runner (minimum 504 mm recommended).

• The drawer and cabinet structure must be strong enough to support up to 90 kg, including drawer weight and contents.

• Install both runners level and parallel to ensure smooth movement and avoid jamming.

• Use only Hettich-recommended screws and fixing points for secure installation.

• Do not exceed the load limit, as it may damage the runners or cause drawer failure.
