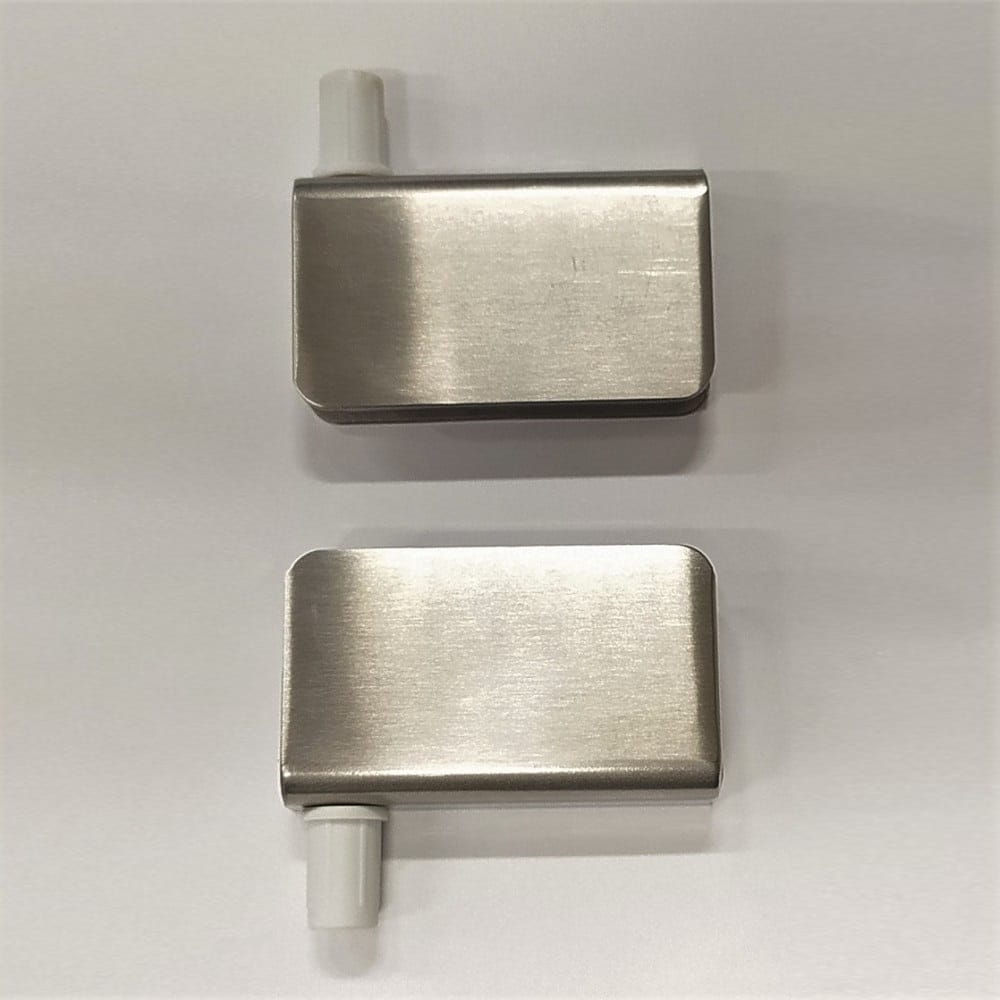

Pivot Glass Hinge 8 mm- Satin Stainless Steel 304

SKU: PGH1

Manufacturer: EBCO

A Pivot Glass Hinge 8mm is a hinge designed for glass doors or panels, specifically accommodating 8mm thick glass. It allows the glass to pivot smoothly, providing a secure and sleek solution for modern glass installations.

Price Starting From

₹ 418.00

Click below to Proceed to bulk order purchase and enjoy discounts up to 50%

Click below toProceed to bulk order purchase and enjoy discounts up to 70%

Product Description

Brand	Ebco
Condition	New
Model	Pivot Glass Hinge 8 mm
Code	PGH1
Size	60 x 50 x 16 mm
Finish	Satin Stainless Steel 304
Set/Pcs	Set of 2 Pcs

Features:

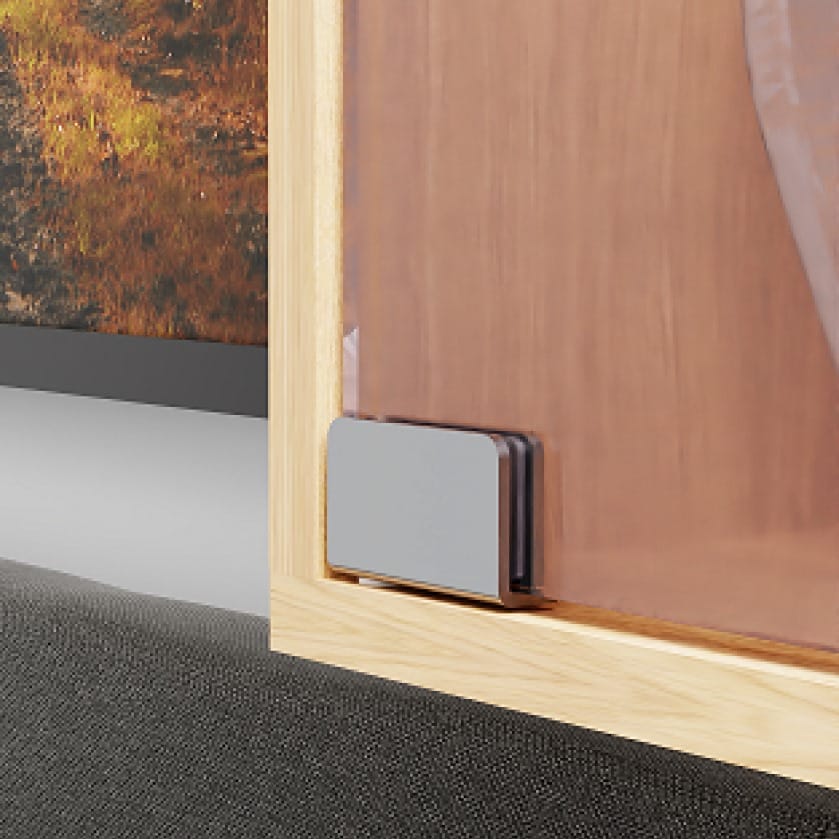

Specially designed hinge for small cabinets with glass doors.
Compatible for glass thickness from 6mm to 10mm
Made of SS304
Min cabinet top & base panel thickness: 18mm
Finish : Satin Stainless Steel 304.

Fitting Instructions

Drill Ø10 mm holes in top & bottom side of cabinet as shown and insert the Cap into hole. ( Min. ply thickness = 18mm )
Drill Ø12mm holes in glass as per dimensions shown

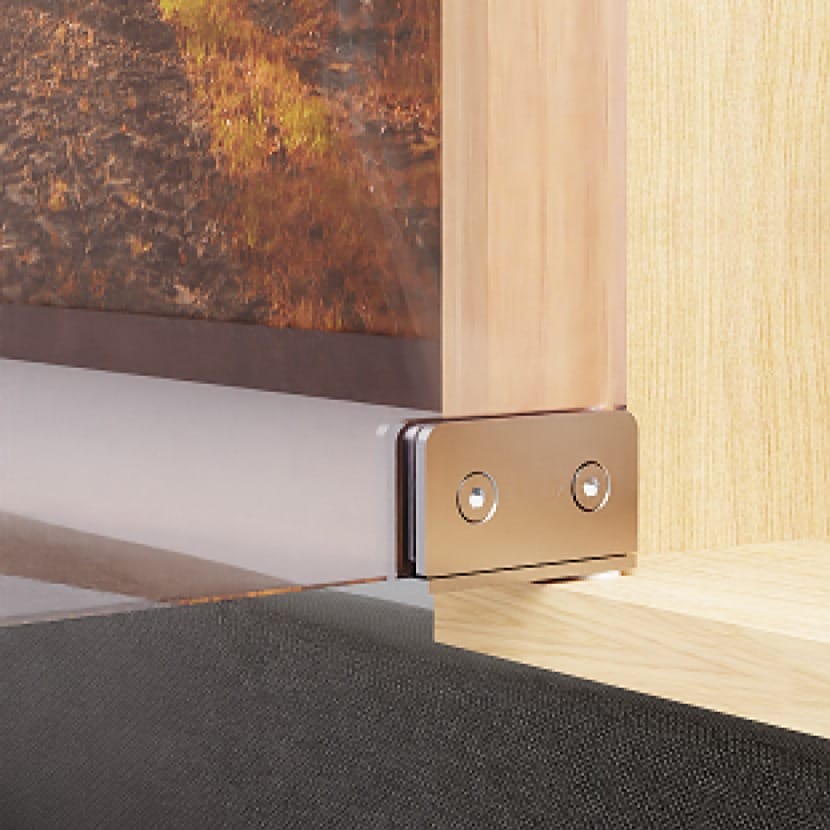

Fix the glass with hinge as shown & assemble.
Glass thickness adjustment possible from 6 to 10mm as shown

Caution- For efficiency and durability

Do not chisel.
Hinges must not be hammered.
