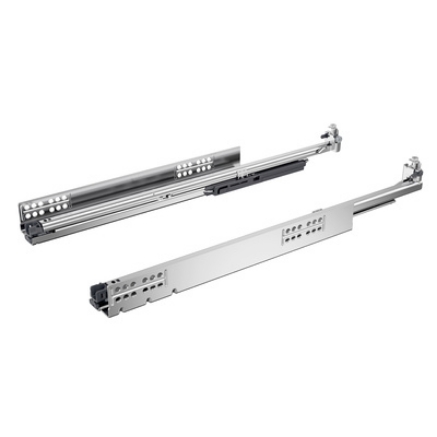

Quadro-V6 Full Extension 30 Kg with P2O, 500 mm with catches

• Full-extension drawer runner: the drawer pulls out completely for full access.

• Load capacity of up to 30 kg (load class M) for the full-extension model.

• Integrated Push-to-Open (P2O) mechanism: opens the drawer with a gentle press—ideal for handle-less furniture.

• Installation via slide-on system with catches and tool-less height adjustment for easier alignment.

• Concealed runner profile (hidden from view once drawer front is installed) for clean furniture aesthetics.

• Made of galvanised steel and built on a durable steel-ball bearing mechanism for smooth and reliable operation.

• Compatible with drawers that have side-profile thickness up to approx 16 mm in many variants.

• “Platform” drilling concept: uniform cabinet body, drawer and front panel dimensions for different lengths make production/planning simpler.

Caution- For efficiency and durability

• Do not apply paint or polish.

• Do not exceed the 30 kg load capacity to maintain smooth and safe operation.

• Ensure both runners are installed level and parallel to allow the Push-to-Open (P2O) system to work correctly.

• Avoid using additional lubricants or oils—the runners are pre-lubricated for life.

• Handle the Push-to-Open mechanism gently during installation to prevent internal damage.

• Use only original Hettich components and catches for proper fit and function.
