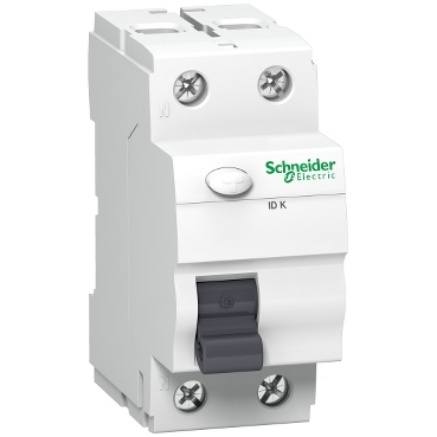

Schneider Electric Pack of 6 RCCB ID K 2P 40A 300mA AC SKU-AECMCB-A9KR14240BQ

SKU: AECMCB-A9KR14240BQ

*Effective protection against electrocution due to direct and indirect contact and earth leakages *No accidental contact with live parts, thanks to finger-proof IP 20 terminals *Current sensing technology (voltage independent) provides protection even at extra low voltages *Environmental performance of the product

Price Starting From

Old price: ₹ 15,599.00

Price: ₹ 15,038.48

Click below to Proceed to bulk order purchase and enjoy discounts up to 50%

Click below toProceed to bulk order purchase and enjoy discounts up to 70%

Product or component type	Residual current circuit breaker (RCCB)
Device short name	ID K
Poles description	2P
Neutral position	Left
[In] rated current	40 A
Network type	AC
Earth-leakage sensitivity	300 mA
earth-leakage protection time delay	Instantaneous
Earth-leakage protection class	Type AC

Complementary
device location in system	Group incomer
Network frequency	50 Hz
[Ue] rated operational voltage	220...240 V AC 50 Hz
Residual current tripping technology	Voltage independent
Rated breaking and making capacity	Idm 500 A Im 500 A
Rated conditional short-circuit current	GL63: Inc 4.5 kA K60: Inc 6 kA
[Ui] rated insulation voltage	440 V AC 50 Hz
[Uimp] rated impulse withstand voltage	4 kV
Contact position indicator	No
control type	Toggle
Mounting mode	Clip-on
mounting support	DIN rail
9 mm pitches	4
height	81 mm
Width	36 mm
Depth	68 mm
Net weight	0.18 kg
Colour	White
Mechanical durability	5000 cycles
Electrical durability	AC-1: 4000 cycles
Connections - terminals	Biconnect top or bottom 1…35 mm² rigid Biconnect top or bottom 1…25 mm² flexible
Wire stripping length	14 mm for top or bottom connection
Tightening torque	3.5 N.m top or bottom

Environment
Standards	EN/IEC 61008-1
IP degree of protection	IP20 conforming to IEC 60529 IP40 (modular enclosure) conforming to IEC 60529
Pollution degree	2
Electromagnetic compatibility	8/20 µs impulse withstand, 200 A conforming to EN/IEC 61008-1
Tropicalisation	2 conforming to IEC 60068-1
Relative humidity	95 % at 55 °C
Ambient air temperature for operation	-5…55 °C
Ambient air temperature for storage	-25…85 °C

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	8.0 cm
Package 1 Width	4.0 cm
Package 1 Length	9.0 cm
Package 1 Weight	0.235 kg
Unit Type of Package 2	S03
Number of Units in Package 2	54
Package 2 Height	30 cm
Package 2 Width	30 cm
Package 2 Length	40 cm
Package 2 Weight	16.92 kg
