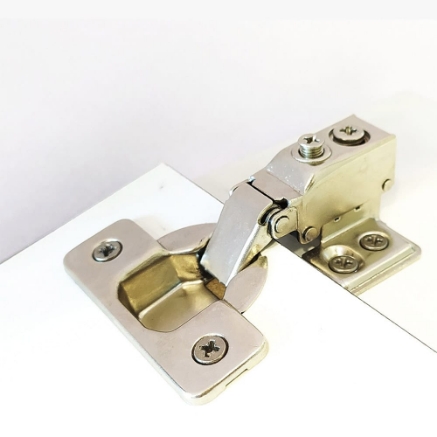

Short Arm Hinge with 4 hole mounting plate - Nickel Plated
The Short Arm Hinge with 4-hole mounting plate is a compact and durable hinge designed for secure door attachment. Its 4-hole mounting plate ensures stable installation, offering smooth and reliable door movement for various cabinetry applications.
Price Starting From Click below to Proceed to bulk order purchase and enjoy discounts up to 50%
Click below toProceed to bulk order purchase and enjoy discounts up to 70%
| Brand | Ebco |
| Condition | New |
| Model | Short Arm Hinge with 4 hole mounting plate |
| Code | HSA1-M1 |
| SIze | 35 mm |
| SPU | 100 |
| Finish | Nickel Plated |
| Set/Pcs | Set of 2 Pcs. |
Features:
- Available in Full Overlay.
- Can be used in Aluminium Framed Cabinets.
- Soft Close mechanism prevents shutter from banging.
- Max. Opening : 100°.
- Max. Shutter size : 34" x 22" (850mm x 550mm) for 2 Hinges.
- Shutter Thickness : 16mm to 19mm.
- Shutter Cavity : Ø35mm, 12 deep, Cavity 4mm from edge.
- Finish : Nickel Plated
Fitting Instructions
- Drill out the cavity in the shutter as per the dimensions.
- Fit the cap into the shutter cavity and screw on the hinge at right angle to the edge of the shutter.
- Mark holes in the cabinet for mounting plate and screw on the Hinge to the Cabinet.
- By loosening the bracket screws, the shutter can slide horizontally and also be pivoted for varying pressure.
Caution- For efficiency and durability
- To avoid damage to hinge, do not force the door to exceed 105º.
- Do not apply paint or polish.
- Hinges must be parallel.
- The hinge must not be hammered.
