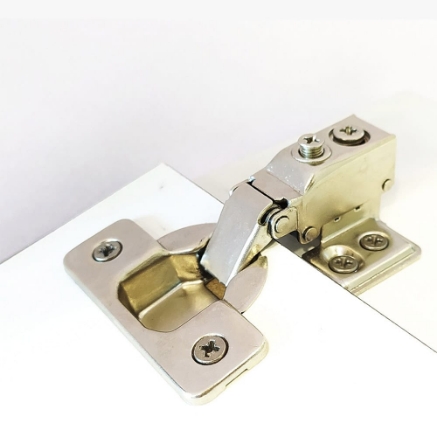

Short Arm Hinge with 4 hole mounting plate - Soft Close - Nickel Plated
The Short Arm Hinge with 4-hole mounting plate - Soft Close offers smooth, quiet door operation with its soft-close feature. Its compact design and 4-hole mounting plate ensure stable installation and reliable performance for various cabinetry applications.
Price Starting From Click below to Proceed to bulk order purchase and enjoy discounts up to 50%
Click below toProceed to bulk order purchase and enjoy discounts up to 70%
| Brand | Ebco |
| Condition | New |
| Model | Short Arm Hinge with 4 hole mounting plate - Soft Close |
| Code | HSA1-M1-SC |
| SIze | 35 mm |
| Finish | Nickel Plated |
| Set/Pcs | Set of 2 Pcs. |
Features:
- Available in Full Overlay.
- Can be used in Aluminium Framed Cabinets.
- Soft Close mechanism prevents shutter from banging.
- Max. Opening : 100°.
- Max. Shutter size : 34" x 22" (850mm x 550mm) for 2 Hinges.
- Shutter Thickness : 16mm to 19mm.
- Shutter Cavity : Ø35mm, 12 deep, Cavity 4mm from edge.
- Finish : Nickel Plated
Fitting Instructions
- Drill out the cavity in the shutter as per the dimensions.
- Fit the cap into the shutter cavity and screw on the hinge at right angle to the edge of the shutter.
- Mark holes in the cabinet for mounting plate and screw on the Hinge to the Cabinet.
- By loosening the bracket screws, the shutter can slide horizontally and also be pivoted for varying pressure.
Caution- For efficiency and durability
- To avoid damage to hinge, do not force the door to exceed 105º.
- Do not apply paint or polish.
- Hinges must be parallel.
- The hinge must not be hammered.
