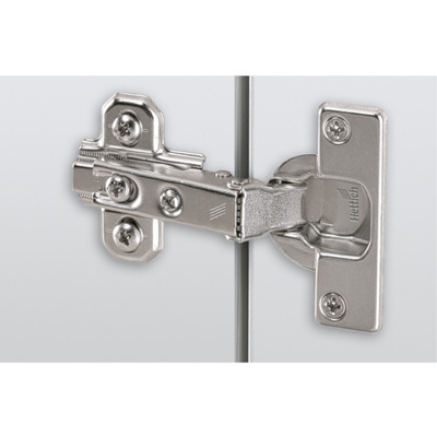

Slide On 2333 Hinge - T42 for 14-25 mm thick doors; Opening angle 95°, Base -1.5 (Crank 16°) with Mounting Plate (D 1.5 mm)

• Suitable for door thickness from 14 mm to 25 mm.

• Allows a 95° opening angle for easy access.

• Concealed hinge – hidden when the door is closed for a clean look.

• Slide On system allows quick and easy installation or removal.

• Base height -1.5 mm and crank 16° – ideal for inset doors.

• Comes with a mounting plate (D 1.5 mm) for firm fitting.

• Provides smooth and quiet door movement.

• Made from nickel-plated steel for durability and rust resistance.

Caution- For efficiency and durability

• Do not apply paint or polish.

• Use this hinge only for inset doors — not suitable for overlay or half-overlay types.

• Ensure the door thickness is between 14 mm and 25 mm for a proper fit.

• Drill the hinge cup hole (35 mm diameter) accurately to the correct depth.

• Do not over-tighten screws, as this may damage the hinge or the cabinet.

• Confirm that the base height (-1.5 mm) and crank (16°) match your cabinet design.

• Check that the door can open fully (95°) without hitting nearby panels.
